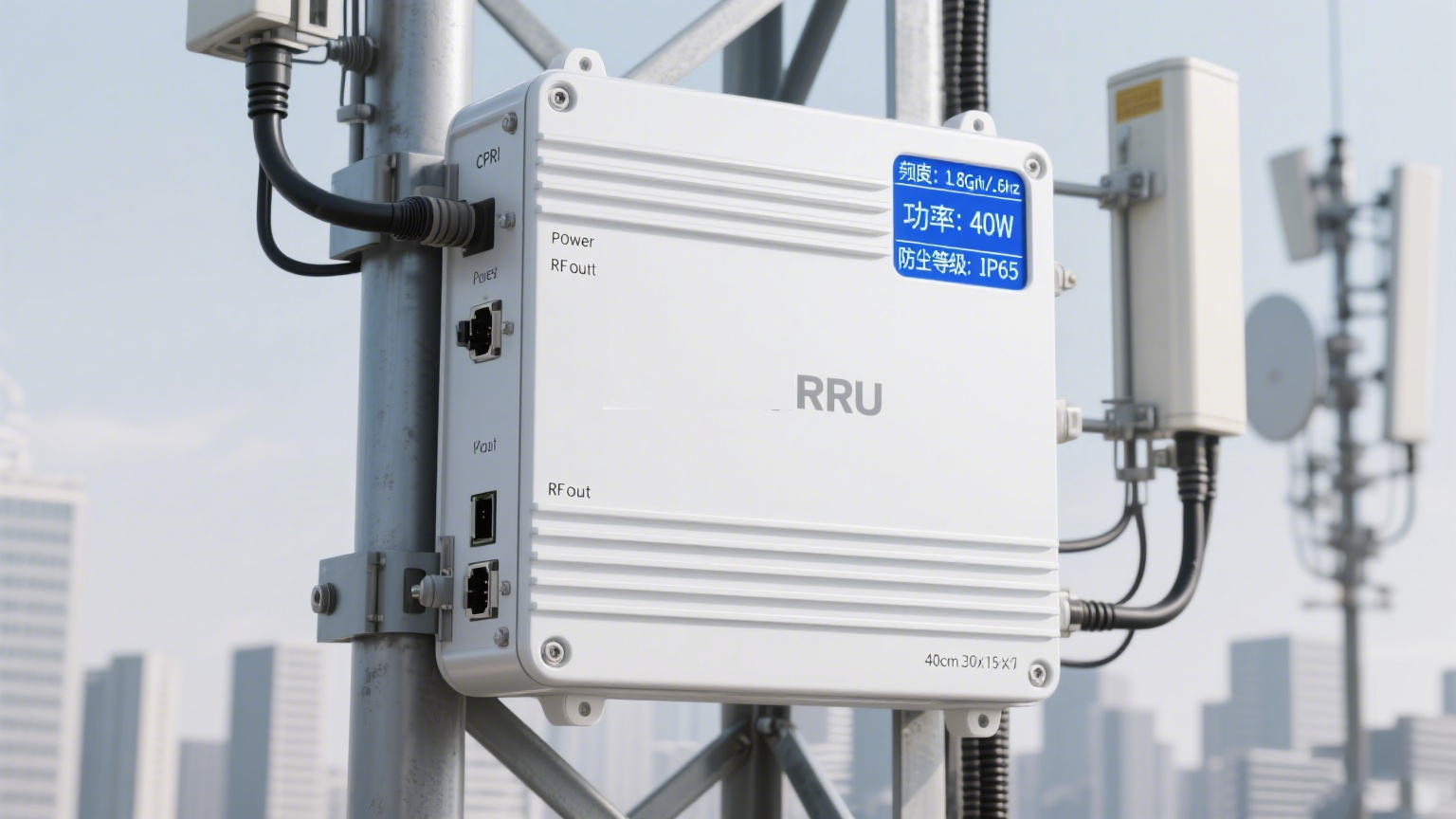

The Remote Radio Unit, or RRU for short, plays a vital role in modern cell networks by taking those digital signals coming out of the Baseband Unit (BBU) and turning them into actual radio waves we can transmit wirelessly. When operators move these RF components away from central locations and put them right next to antennas instead, they cut down on signal degradation along those long cables running between equipment rooms. Plus it gives telecom companies much more freedom when designing their coverage areas. What exactly does an RRU do? Well, among other things, it boosts weak signals so they travel farther, filters out unwanted background noise that might interfere with calls or data transfers, and keeps everything looking clean and stable even when switching between different frequency ranges like the popular 700 MHz band used for rural coverage or the faster 3.5 GHz spectrum found in urban environments.
RRUs work together with BBUs that take care of all the digital processing and manage protocols. The whole setup splits things up so most of the heavy computing happens in the BBU while the RRU handles those radio frequency tasks. This arrangement cuts down on system lag quite a bit actually around half compared to older systems where everything was packed into one unit. Another benefit is that it makes scaling up easier and repairs less complicated when something goes wrong. On the downside though, these RRUs eat up about two thirds of the total power used by a base station. That means designers need to put serious thought into how heat gets managed, especially since these units often sit outside in all kinds of weather conditions.
Modern base stations consist of three primary layers:
By colocating the RRU with the antenna, coaxial cable losses—up to 4 dB per 100 meters at 2.6 GHz—are significantly reduced, enhancing both coverage and energy efficiency.
When handling both uplink and downlink traffic, remote radio units work by taking those optical signals coming through fiber connections and turning them into electrical signals. These get boosted to transmission levels ranging from 20 to 80 watts before being directed through antenna arrays for beamforming purposes. The result? Advanced MIMO setups become possible, which means we're seeing roughly three times better spectral efficiency in city areas where space is limited. According to field measurements, sites equipped with RRUs maintain signal availability at around 98.4%, way ahead of traditional centralized systems that hover around 89.1%. Why the difference? Better signal quality combined with reduced losses along transmission paths makes all the distinction here.
When choosing an RRU, it's important to match it with what bands the network actually operates on these days, whether that's sub-6 GHz or those fancy mmWave frequencies for 5G rollout. Carrier aggregation support is pretty much mandatory now since so many operators are dealing with all sorts of fragmented spectrum allocations. The PCB substrate material matters too. Good quality materials help keep performance stable across different frequencies. Some manufacturers claim their optimized substrates cut down on how often engineers need to retune things when deploying multiple bands together, sometimes by as much as 20 to 40 percent. For anyone running networks in tough environments, looking at units with solid dielectric properties makes sense. These components tend to hold up better against signal degradation when faced with changing load demands and weather extremes that real world installations inevitably encounter.
To keep signals clear when traffic spikes, high performance remote radio units need to hit at least 43 dBm on their 1 dB compression point. If this threshold drops too low, distortion becomes a real problem during busy periods. When it comes to error vector magnitude, staying under 3% is critical for accurate modulation across different channels. Systems that push over 60 watts really depend on good cooling solutions because heat buildup will actually reduce signal quality somewhere between 15% and 30%. That kind of degradation adds up fast in real world conditions. Equipment featuring ultra low noise amplifiers gives operators around 4 to 6 dB boost in signal to noise ratios, making these LNAs especially valuable where there are lots of competing signals like in city centers or densely populated areas.
Standard coax cables lose around half a decibel per meter at frequencies around 3.5 GHz, which makes running them for long distances pretty inefficient in most cases. When we install remote radio units closer to the actual antennas, this reduces the amount of cable needed and can cut down on those pesky passive intermodulation issues by roughly 70 percent. For buildings with equipment mounted on rooftops, using pressurization kits becomes essential since they stop water from getting inside the cables where it belongs nowhere near. Another smart move comes with combining fiber optics with RRU technology. These hybrid systems really boost performance, keeping signals strong at about 98% quality even across distances as far as 500 meters thanks to those special low loss optical connections.
Getting RRUs deployed properly really depends on how well they connect physically and electrically to the antennas. When engineers get the impedance right, they can cut down reflected power to less than 0.5 dB which helps keep signals strong and clear. Recent tech breakthroughs in things like integrated photonics and those special materials called metamaterials have made it possible to convert analog signals to digital faster than ever before – we're talking under 500 nanoseconds now. This kind of speed matters a lot for coordinating beams in real time, something 5G NR networks need to function properly. For operators running large scale deployments, these kinds of improvements make all the difference when trying to maintain accurate timing across multiple points and adjust beams dynamically as conditions change.
New generation remote radio units come equipped with 64T64R configurations (that's 64 transmitters paired with 64 receivers) which make massive MIMO possible. This setup lets the system send data to several users at once instead of one at a time. Smart machine learning systems tweak those beamforming parameters roughly every two milliseconds, and field tests have shown this can actually increase throughput for users on the edge of cells by around forty percent. Speaking of standards, 5G requires equipment to handle eight layers of spatial multiplexing. When all those layers work together properly, we're talking potential speeds reaching as high as ten gigabits per second thanks to these coordinated transmission methods across different antennas.
In urban areas, 60% of operators deploy distributed RRUs near antennas to minimize feeder loss and latency. While centralized BBU-RRU setups remain dominant in stadiums (85% market share) for coordinated interference control, distributed models reduce latency by 35% in high-rise environments by enabling edge-based signal processing and simplifying fronthaul demands.
Distributed Antenna Systems, or DAS for short, work by deploying several antennas along with Remote Radio Units (RRUs) to boost signal coverage across big buildings or tricky structures. These RRUs serve as the main connection point between the Baseband Unit (BBU) and the actual antennas. When we position these RRUs right next to where the antennas are installed, it helps cut down on those annoying coaxial cable losses. Plus, this setup allows for different network layouts like connecting everything in a chain or using a star pattern. What makes all this so great? Well, it creates networks that can grow easily while keeping latency really low, often below 2 milliseconds. We've seen this method shine particularly well in places with lots of people moving around, think sports arenas for instance. By centralizing the RRU installation, engineers manage to simplify things quite a bit on the fronthaul side, somewhere around half the usual complexity according to our field reports.
RRU-enhanced DAS systems address major urban challenges:
These systems distribute both 4G and 5G signals simultaneously, ensuring future-ready infrastructure. A 2023 field study found RRU-based DAS achieved 98.2% signal reliability across 5 km² of urban terrain—22% higher than standalone macrocells.
The power consumption of 5G RRUs jumps around 30 to 40 percent compared to their 4G versions because they handle much wider bandwidths and use those big MIMO arrays. To keep things running smoothly, manufacturers have started implementing smart cooling systems like liquid cooling methods and special heat spreading materials that manage to hold internal temps under 45 degrees Celsius even when it's blistering hot outside. Without proper thermal management, these units don't last nearly as long in places where the sun beats down all day. We've seen cases where poor cooling cuts the life expectancy of RRUs in half across tropical areas, which is why investing in good cooling solutions makes such a difference for both how long equipment lasts and whether it keeps working reliably day after day.
Today's remote radio units need to handle around four to six different frequency bands covering everything from LTE networks all the way through 5G New Radio and various IoT protocols. This lets multiple operators share the same physical infrastructure in busy urban zones where space is at a premium. The result? Significantly less crowding on towers with estimates suggesting somewhere between half and two thirds fewer installations needed, without compromising on signal quality that stays reliably strong most of the time. What makes these systems so valuable is their modular design approach. Carriers can simply slot in additional radio modules when they acquire new spectrum licenses rather than tearing out entire pieces of equipment. This not only cuts down on capital expenditures but also minimizes service interruptions during network upgrades.
Virtual Radio Access Network technology basically separates the RRU hardware from those proprietary baseband software components, moving much of the processing work to cloud platforms instead. What this means for the industry is that we now need standard fronthaul connections such as eCPRI along with very accurate timing protocols if we want to keep up with strict latency demands. Field reports from telecom companies actually show pretty impressive results too. Those networks running on vRAN compatible RRUs have seen their service deployment times cut down by around 40 percent while maintenance expenses dropped approximately 35%. The main reasons behind these improvements? More adaptable systems combined with automated processes throughout network operations makes all the difference in today's fast paced telecommunications landscape.
What is an RRU?
An RRU, or Remote Radio Unit, is a component in telecommunications networks that converts digital signals from the Baseband Unit (BBU) into radio signals for transmission.
Why are RRUs located next to antennas?
Positioning RRUs next to antennas reduces signal loss along transmission paths, enhancing signal strength and coverage efficiency.
How do RRUs contribute to energy efficiency?
By colocating with antennas, RRUs reduce coaxial cable losses, significantly lowering signal attenuation and improving energy efficiency.
What is the relationship between RRUs and BBUs?
RRUs handle radio frequency tasks, while BBUs perform digital processing and protocol management, creating an efficient system architecture.
