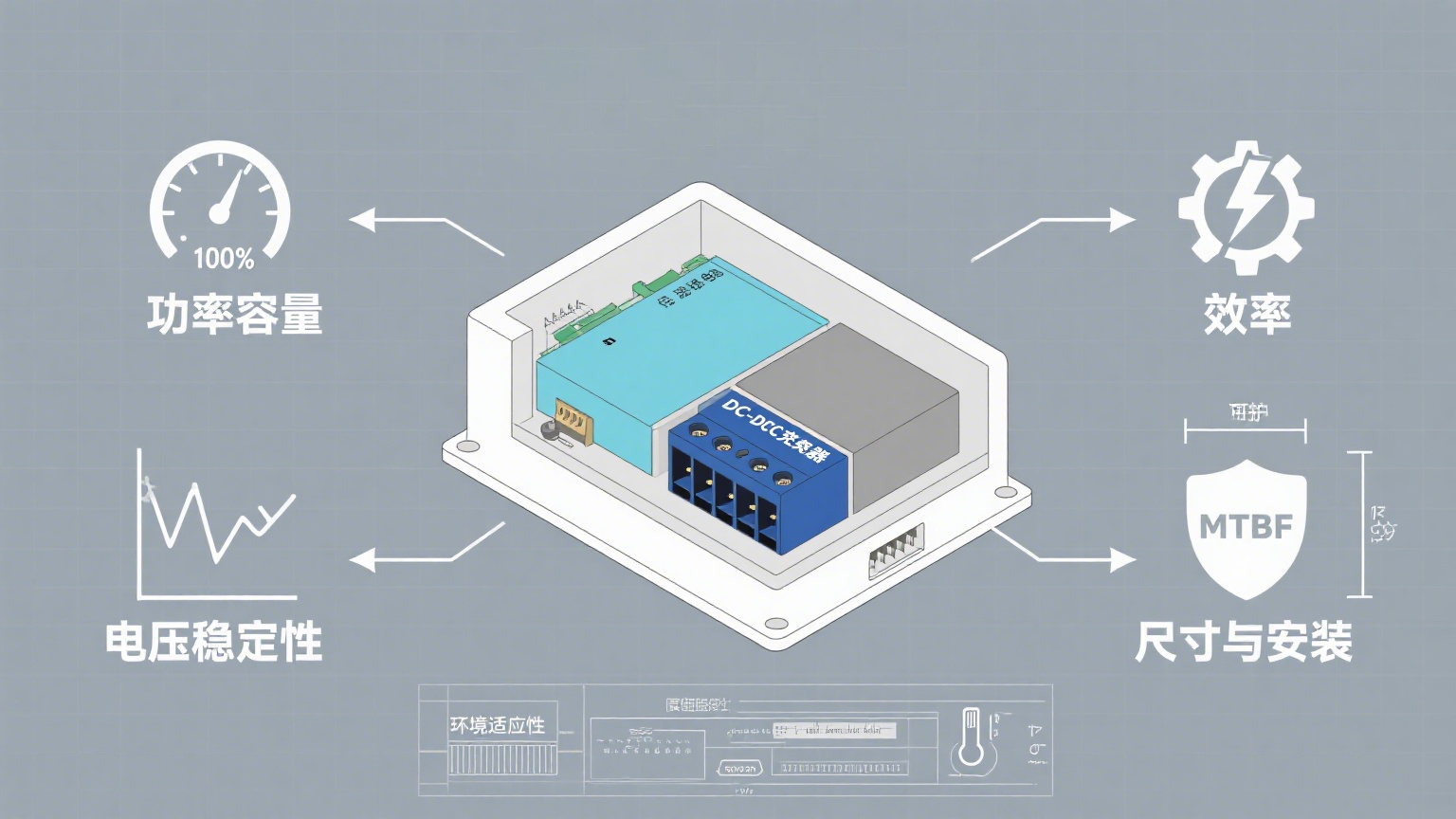

How to Select the Right Power Module for Baseband Units

Understanding Baseband Unit Power Demands and Workload Dynamics

Overview of Baseband Processing Unit and Its Power Demands

The latest baseband processing units need specially designed power modules that can supply between 48 and 72 volts DC while keeping ripple noise below 150 microvolts to preserve signal quality. Power consumption varies quite a bit across different models, ranging from about 80 watts up to 350 watts based on how complex the processing is. When looking at 5G systems specifically, these tend to draw around 22 percent more power at peak times than their 4G counterparts according to recent industry reports. This increased demand becomes especially noticeable during MIMO operations and when handling error corrections. The power modules must actually handle 105% of what they're rated for at least ten seconds straight without failing under those conditions.

Matching Power Module Capabilities with Baseband Unit Workloads

A 2025 industry analysis revealed that 68% of baseband power modules fail workload matching due to three critical oversights:

• Ignoring protocol stack processing spikes during handover operations
• Underestimating LDPC decoding currents by 19–31%
• Overlooking 10–15ms latency in current-sharing topologies

These mismatches lead to voltage droop, clock instability, and increased bit error rates, particularly under dynamic traffic conditions.

Performance Criteria in Dynamic Signal Processing Environments

Optimal power modules must meet stringent performance benchmarks across generations:

Meeting 5G thresholds demands faster control loops, tighter regulation, and advanced paralleling techniques.

Case Study: Power Fluctuations in 5G Baseband Units During Peak Throughput

During field testing at a 3.5 GHz massive MIMO installation, engineers noticed a significant 27% drop in voltage when running both 256-QAM modulation and beamforming at the same time. The existing power module had only 92 microfarad bulk capacitance, which wasn't enough to handle those brief but intense current surges that hit over 85 amps for about 8 microseconds. This caused problems with the digital signal processor's clock stability and resulted in losing around 12% of data packets. When they switched to a different setup combining 470 microfarad polymer capacitors with four phase interleaving, things got much better. Peak current capacity went up almost three times what it was before, and they still managed to keep efficiency pretty high at 94.1% even when operating at just 40% load capacity.

Sizing Power Modules: Output Power, Current Spikes, and Derating

Step by Step Method for Calculating Total Output Power Needs

Accurate power module sizing follows three key steps:

1. Sum baseband unit’s nominal power consumption across all DSP cores and I/O interfaces
2. Add 25–40% margin to accommodate component aging and load variations
3. Multiply by 1.5–2x for redundancy in N+1 configurations

Field data reveals that 63% of underperforming baseband units in 2023 stemmed from inadequate power headroom calculations (Telecom Power Consortium), underscoring the importance of conservative initial estimates.

Accounting for Transient Current Spikes in Digital Baseband Circuits

Modern baseband processors exhibit millisecond-scale current surges up to 200% of nominal loads during signal demodulation peaks. These transients demand power modules with:

• Slew rates >200 A/µs
• Response times <50 µs
• Overshoot tolerance of ±15%

A 2023 study found that 38% of 5G baseband units experienced premature power module failures due to unmanaged current spikes above 170A (Wireless Infrastructure Report), highlighting the need for robust transient response design.

Using Derating Curves to Ensure Long-Term Stability

Leading manufacturers now embed real-time derating algorithms that adjust operating parameters based on temperature sensors and load profiles. This approach reduced thermal-related failures by 72% in 4G/5G hybrid units (2024 Power Electronics Journal).

Efficiency, Thermal Performance, and Cooling Integration

Energy Efficiency as a Driver of Thermal Performance

Power modules today manage heat much better because they're simply more efficient. When energy gets wasted, it turns into heat, so improving efficiency means less heat buildup. Take DC-DC switching designs for instance these advanced systems cut down on thermal problems by about 40 percent when compared to old school linear regulators. They work around 92 to 96 percent efficiently which makes a big difference. Baseband units really benefit from this connection between efficiency and heat management. Imagine an 80 watt processor running in one of these units it might be producing anywhere from 6 to 8 watts worth of extra heat if the power conversion isn't quite right. That kind of waste adds up fast and creates all sorts of headaches for engineers trying to keep things cool.

Comparative Analysis: Switching vs. Linear Power Modules in Heat Dissipation

The 6:1 heat differential explains why 78% of 5G baseband units now use switching architectures despite their complex ripple mitigation requirements.

Thermal Design Power (TDP) Alignment With Enclosure Cooling Limits

Power module TDP ratings must align with both worst-case processing loads and environmental constraints. A 300W TDP module in a 40°C ambient environment typically requires:

• 25% airflow reserve for altitude derating
• 15% margin for dust accumulation in outdoor enclosures
• Active cooling capable of displacing 120CFM per kW heat output

Systems exceeding these thresholds risk thermal throttling, reducing baseband throughput by up to 22% during sustained operations.

Industry Paradox: High Efficiency at Partial Load vs. Full Load Conditions

While modern power modules achieve 80%+ efficiency at 20% load—ideal for baseband units with variable traffic—their full-load performance often dips below competitors. This trade-off creates a 13% efficiency gap between light-load-optimized and full-load-focused designs, forcing engineers to prioritize either operational flexibility or peak capability.

Input Voltage Compatibility and Signal Integrity Protection

Evaluating Compatibility with Existing DC Distribution Architectures

When picking out a power module for existing DC distribution setups, it's important to look at both voltage tolerance levels and how well they share loads. Most baseband units work with 48V DC systems, and interestingly enough, something as small as a 5% drop or spike in voltage can throw off those synchronization protocols completely. According to some research published last year on 5G network components, power modules capable of handling inputs between 40 and 60 volts cut down on compatibility issues by around two thirds when compared against older models with fixed voltage ranges. This kind of flexibility makes all the difference in maintaining stable operations across different environments.

Impact of Input Voltage Instability on Baseband Signal Integrity

When voltage ripple goes over 120mVpp in power modules, it actually makes things worse for 256-QAM signals, increasing phase noise around 18%. This causes EVM levels to drop below what 3GPP standards require, which is definitely not good news for anyone working on these systems. The problem gets even more pronounced in millimeter wave applications where baseband processing becomes extremely sensitive. Transient current spikes above 2 amps start messing with SERDES circuits, introducing unwanted timing jitter that engineers hate dealing with. Fortunately, newer module designs are starting to address this issue through active harmonic filtering techniques. These advanced solutions cut down conducted EMI by roughly 40% without sacrificing much efficiency either, keeping performance at about 95% even when running at full capacity.

Selecting the Optimal Power Module Type for Baseband Applications

Functional Differences and Use Cases for AC-DC, DC-DC, Linear, and Switching Modules

Getting baseband units to work right means matching power module specs with what the system actually needs. AC-DC converters are great when dealing with alternating current inputs, but they create headaches in telecom settings where most equipment runs on 48V DC already. The linear modules have this really low noise level below 2 microvolts RMS according to IEEE research from last year, but they waste around half their energy, which isn't practical at all for handling those big power demands in baseband processing. Switching designs hit much better efficiency rates between 80 and 95 percent, plus they fit into smaller spaces. Some newer DC-DC models can keep output steady even when 5G networks fluctuate loads by 40 percent, as noted in Ponemon's study. Resonant designs aren't widely used in telecom yet, but early tests suggest they could reach nearly 97 percent efficiency during continuous operations, something manufacturers are keeping an eye on for future applications.

Why DC-DC Switching Modules Dominate in Modern Baseband Units

With the rapid growth of 5G channel aggregation, DC-DC switching modules have become the go-to solution for handling those intense 150A per microsecond current spikes seen in massive MIMO setups. Traditional linear regulators just can't keep up, wasting about two thirds of their input power as heat when dealing with those peak demands during 256QAM modulation. Switching designs take a different approach altogether. They employ pulse width modulation techniques that maintain around 92% efficiency even when operating between 30% and full load capacity. The real benefit here becomes apparent in those crowded baseband enclosures where temperatures often climb to 55 degrees Celsius. These compact spaces simply cannot tolerate the kind of heat buildup that older regulator technologies would generate under similar conditions.

Trade Offs Between Linearity, Noise, and Efficiency

Engineers must balance three competing priorities in baseband power systems:

• Noise: Linear modules maintain <50 dB signal-to-noise ratios critical for 64T64R antenna arrays
• Efficiency: Switching topologies preserve 85%+ efficiency even during 100G NRZ signal processing
• Linearity: Hybrid designs sacrifice 5–8% efficiency to achieve ±0.5% voltage regulation under load

A 2023 study revealed 72% of 5G deployments prioritize efficiency over noise suppression, leveraging post-regulation filtering to meet 3GPP's -110 dBm/Hz EMI thresholds.

Trend: Integration of Hybrid Topologies for Improved Regulation

Many top manufacturers are starting to mix switching pre-regulators with linear post-regulators these days. This combination hits around 88% system efficiency while keeping output ripple down to about 10 mVpp. The whole hybrid setup works really well for those tricky millimeter-wave baseband systems that need both solid 400W power delivery and the kind of precision found in 16-bit ADCs. According to recent field tests published by MobileTech Insights in 2024, there are roughly 43% fewer EVM violations when using this method compared to traditional all-switching designs. Makes sense why so many folks in the industry are turning to this approach for their Open RAN projects these days.

FAQ

What is a baseband processing unit?

A baseband processing unit is essential in telecommunications for handling signal processing tasks. It uses specially designed power modules to deliver specific voltage and power needs while maintaining low ripple noise for high signal quality, especially in advanced technologies like 5G.

Why do 5G systems draw more power than 4G?

5G systems use more power compared to 4G due to their enhanced features like MIMO operations and error corrections, which demand more from power modules, leading to increased power consumption.

How do mismatches in power module capabilities impact baseband units?

Inconsistencies, like ignoring protocol stack processing spikes or underestimating LDPC decoding, result in voltage droop and clock instability, increasing bit error rates under dynamic traffic conditions.

What is the importance of transient response design in power modules?

Transient response design is critical to manage millisecond-scale current surges that can lead to premature power module failures, particularly in demanding 5G environments with high spikes above 170A.

Why are DC-DC switching modules favored in 5G baseband applications?

DC-DC switching modules efficiently handle high current spikes typical in 5G applications, offering superior efficiency compared to traditional linear regulators, and are crucial in maintaining operational reliability in compact and high-temperature environments.

What are the trade-offs between switching and linear power modules?

Switching modules are more efficient and suited for high-current applications, while linear modules offer low noise levels better for noise-sensitive analog settings, yet are less energy-efficient.
